Portable 6-lead Channel Veterinary ECG Machine for Sale-MSLEC26

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Guangzhou Medsinglong Medical Equipment Co., Ltd
[United States]

Address
Room 405-407,South China Building,Fuhua W Rd,Shiqiao Town,Panyu District,Guangzhou,511450,China Guangzhou CHINA
Phone
86-20-13826448637
Contact name
MSLcheapmedical

Quick Information

  • Place of Origin: China

Description

Portable 6-lead channel veterinary ecg machine for sale-MSLEC26

Could you contcct our sale manager.we will tell you the price,Please see our contact.
SKYPE:msl_saler01
Mobile:+86 138 2644 8637
website:http://www.medicalequipment-msl.com

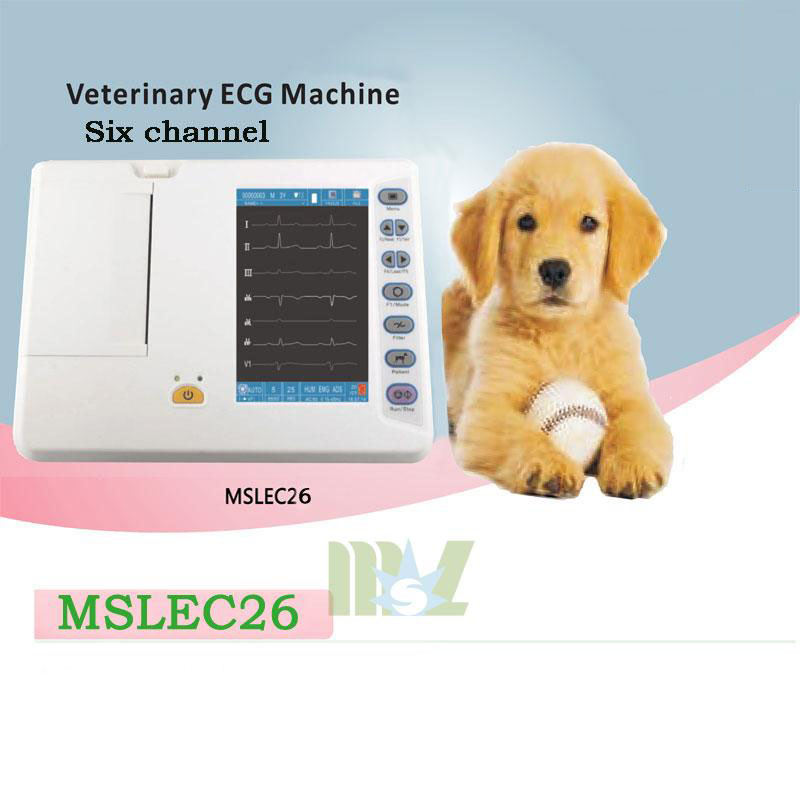

Portable 6-lead channel veterinary ecg machine MSLEC26

MSL Portable 6-lead channel veterinary ecg machine MSLEC26 Features :

7 leads synchronously acquisition and record,excellent auto-interpretation function
High accuracy digital filter,auto-baseline adjustment
Working modes:Manual/Auto/R-R Rhythm
Recording mode:3ch+,3ch+++,6ch
800×480 graphic 7 inch color touch LCD to display detailed ECG information
250 cases storage and replay ( SD card storage is optional )
Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
112mm*20m high resolution thermal printing
Rs232 and USB interface ( USB disk storage, laser printer printing , Veterinary PC ECG software are optional )
300mm*230mm*75mm,2.8kgs
6-lead channel veterinary ecg machine MSLEC26

twelve lead ecg

6-lead channel veterinary ecg machine MSLEC26 Technical Specification:



Lead Standard 7 leads Time constant ≥3.2s
lead acquisition 12bit/1000Hz ( synchronously 7 leads ) Frequency response 0.05~160Hz(-3db)
Work mode Man / Auto/R-R Rhythm Noise level <15μVp-p
Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR ≥120dB (with AC FILTER) Sensitivity 2.5,5,10,20, 40, Auto  (mm/mV)
Input circuit Floating; Protection circuit against Recording mode 3ch+, 3ch+++, 6ch
Defibrillator effect Default Man. Mode is  3ch+++  format
  Default Auto. Mode is  6ch  format
Input Impedance ≥50MΩ Paper speed 6.25、12.5、25、50mm/s(±3%)
Input circuit current ≤0.05μA Paper  50mm *20m Roll paper
Calibrating voltage 1mV±2% Power Supply AC 75-265V(±10%),50/60Hz(±1Hz),40VA
DC Built-in rechargeable battery,14.4V(2000mAh)
Voltage tolerance ≥±500mV Dimension/Weight  300mm×230mm×75mm / 2.8Kg

MSL 6-lead channel veterinary ecg machine MSLEC26 Package:

1 unit / small carton :  40cm*34cm*22cm,      net weight 2.8kgs,      gross weight 4.5kgs
4 units / big carton :   70cm*41cm*46cm,      net weight 12kgs,      gross weight 20kgs

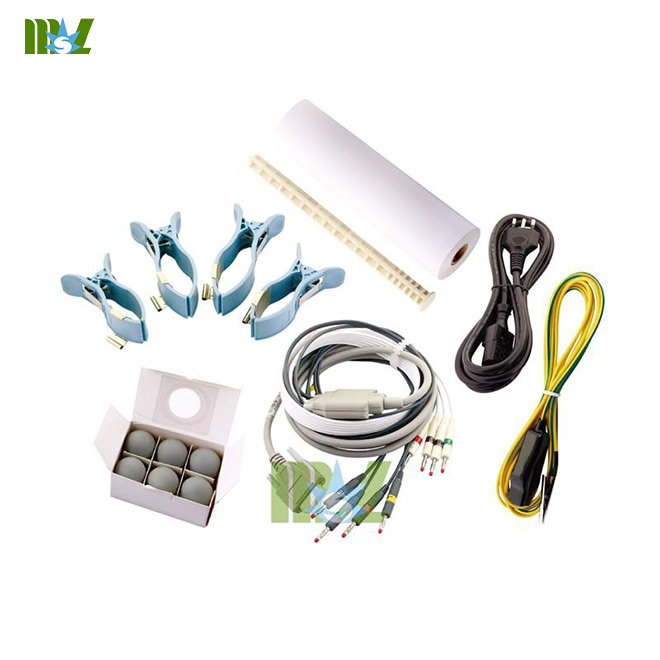

12-lead ECG recorders package

MSL Portable twelve lead ecg package

Portable three Channel Electrocar​diograph / ECG machine MSLEC16 Package:

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs
Portable three Channel Electrocardiograph packaging
4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kgs
three Channel Electrocardiograph packaging

Relate hot sale ECG products share

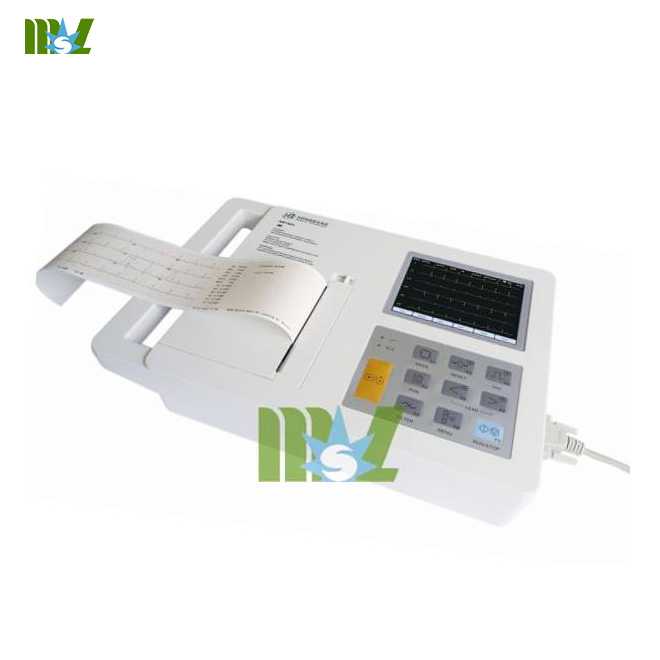

Portable three channel interpretive ecg machine-MSLEC13

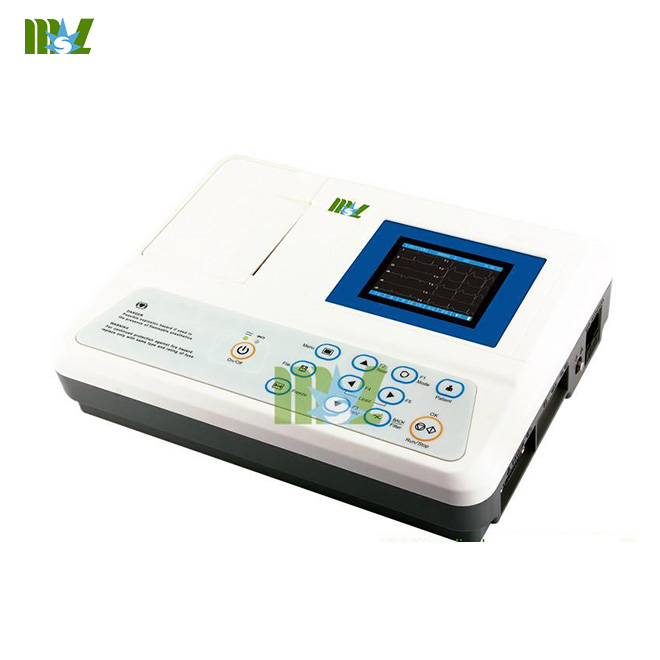

3 Channel Digital Portable EKG Machines / ECG Machine MSLEC16

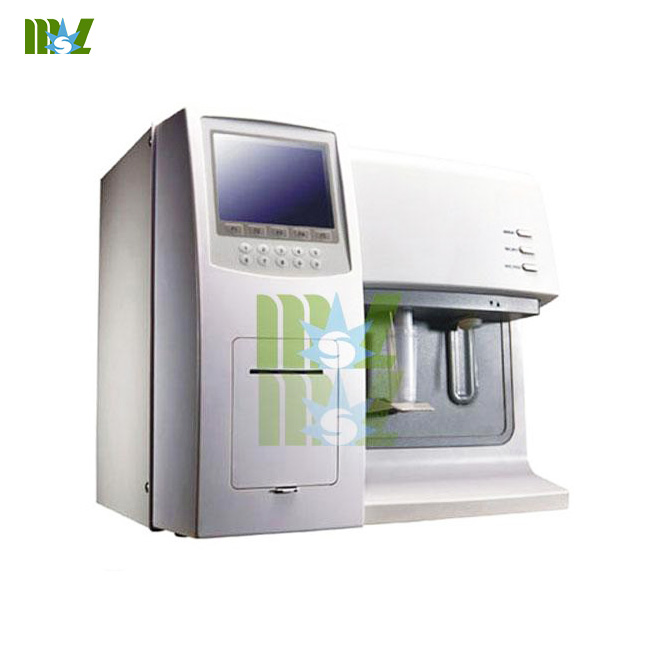

Automatic blood analyzer-MSLAB01,Automatic Hematology Analyzer,Blood Analyzer used in Hospital

Automatic blood analyzer MSLAB01

Cheap Medical 3-differ semi-automated hematology Analyzer of stable quality and CE approve-MSLAB06

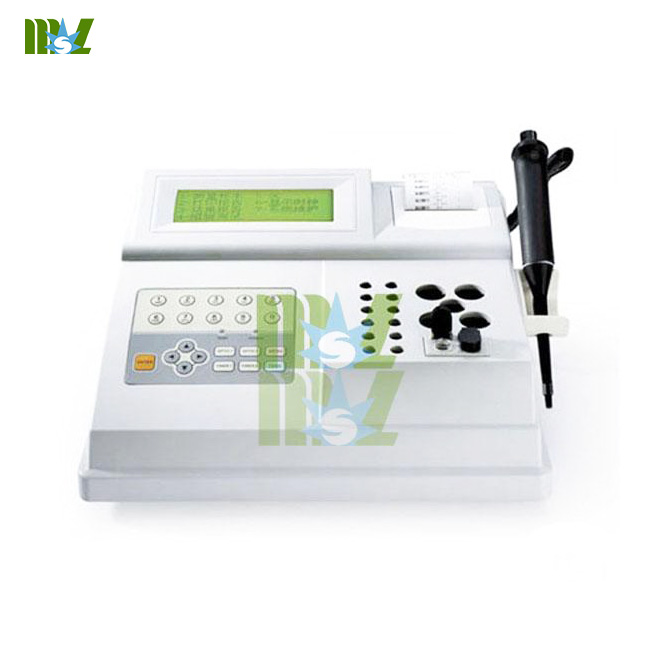

Portable coagulometer analyzer made in China-MSLBA12

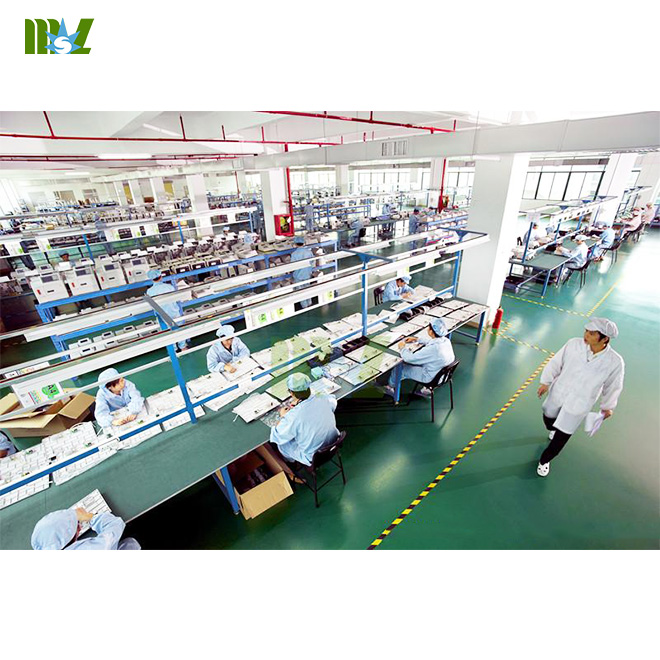

Our Automatic blood analyzer factory image share

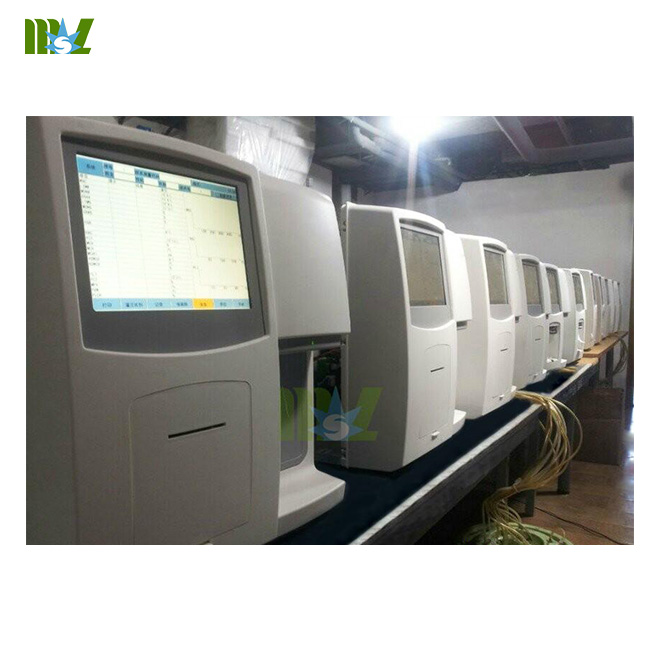

MSL Automatic Hematology Analyzer MSLAB01 for sale

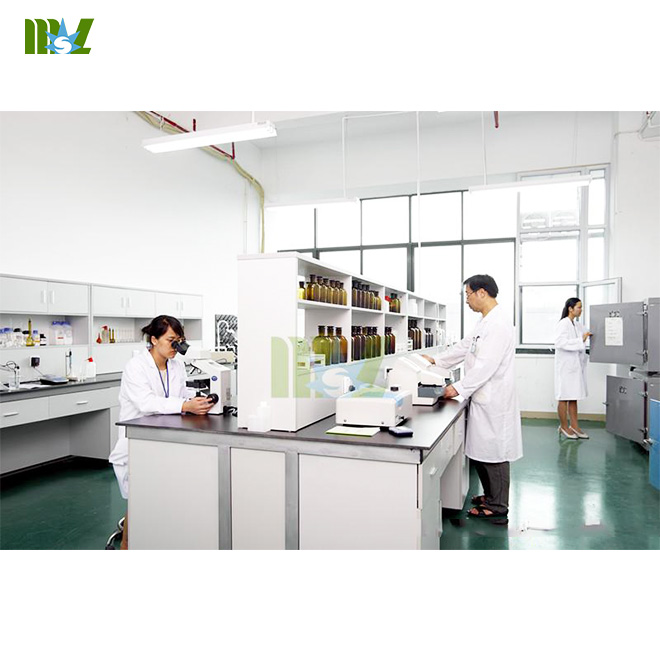

Our Automatic blood analyzer workshop picture share





MSL Medical cooperate with DHL,FEDEX,UPS,EMS,TNT,etc.International shipping company,make your goods arrive destination safely and quickly.

MSL International shipping

MSL Certificate

MSL Certificate




Price

  • Price Condition : FOB
  • Delivery Port : HuangPu Port

Packaging & Delivery

  • Packing :Standard export package
  • Delivery Lead Time : within 7-10 workdays after receipt of payment
  • Minimum Order : 1 Set Set/Sets
  • Supply Ability : 1500 SETS PER MONTH

Product Image

  • Portable 6-lead Channel Veterinary ECG Machine for Sale-MSLEC26 image
